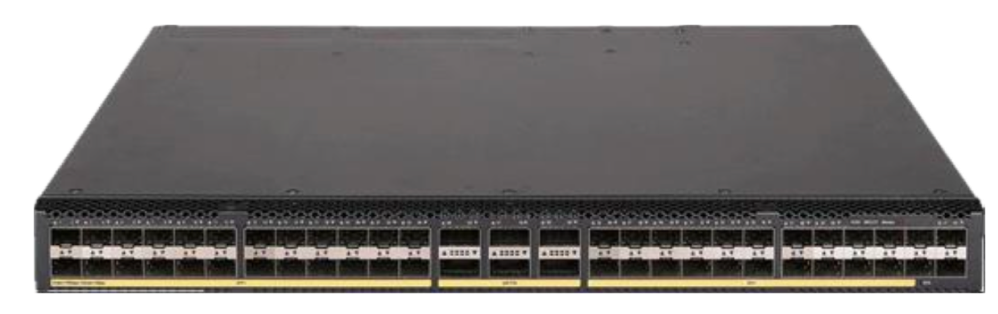

WD-GS-48G6Q28
- 48 × 1/10G SFP+ ports, 6 × QSFP28 ports, 3 × fan tray slots, and 2 × power module slots

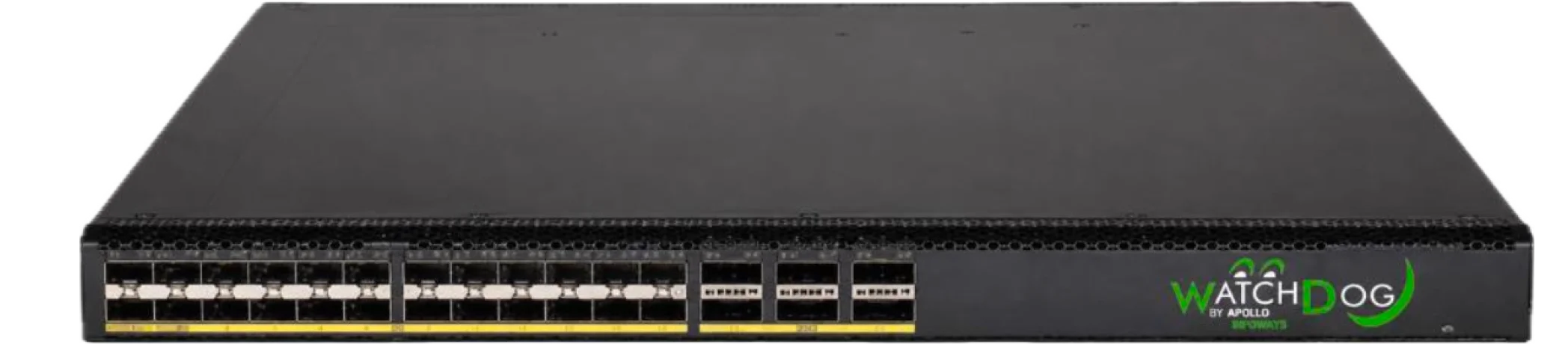

WD-GS-24G6Q28
- 24 × 1/10G SFP+ ports, 6 × QSFP28 ports, 3 × fan tray slots, and 2 × power module slots;
Key Features
Open Application Framework
In WatchDog open application architecture (OAA), the switch can accommodate high-performance OAP modules to offer dedicated services such as firewall, IPS, or load balancing in addition to conventional forwarding services. By installing OAP modules, the customers can use the switch as a multiservice device without having to buy separate service appliances, such as a firewall device.
High-Capacity 10GE Data Forwarding
The WatchDog Enterprise Aggregation Switches. series offer high-density 10GE forwarding and can expand 10GE ports flexibly. It provides 48/24*10/1GE autosensing SFP+ ports, six QSFP28 ports.
Comprehensive Security Control Policies
The WatchDog Aggregation series switches support AAA authentications (including RADIUS authentication) and dynamic or static binding of user identifiers such as user account, IP address, MAC address, VLAN, and port number. Using the switches in conjunction with WatchDog you can manage and monitor online users in real time and take prompt action on illegitimate behaviours. The switches offer a large number of inbound and outbound ACLs and VLAN-based ACL assignment. This simplifies configurations and saves ACL resources.
Software
SOFTWARE SPECIFICATIONS
VxLAN
- VXLAN Layer 2 switching
- VXLAN gateway
- Centralized VXLAN control through OpenFlow+Netconf
- VXLAN routing switching
Virtualization
- VSS
- LACP-, BFD-, and ARP-based multiactive detection (MAD)
- Distributed link aggregation
- Distributed device management
- Stacking through standard Ethernet ports
- Local device stacking and remote device stacking
- Distributed resilient routing
Link aggregation
- 10GE/40GE/100GE port aggregation
- Static aggregation
- Dynamic aggregation
Jumbo frame
- Supported
MAC address table
- Static MAC address
- Blackhole MAC address
- MAC learning limit
Openflow
- Openflow1.3
VLAN
- Port-based VLAN
- Default VLAN
- QinQ and flexible QinQ
- PVST+ and RPVST+
- VLAN mapping
Traffic monitoring
- sFLOW
LLDP
- LLDP/LLDP-MED
DHCP
- DHCP client
- DHCP Relay
- DHCP Snooping
- DHCP Client
- DHCP snooping Option 82/DHCP relay Option 82
ARP
- Static entry
- Gratuitous ARP
- Common proxy ARP and local proxy ARP
- Dynamic ARP inspection
- ARP anti-attack
- ARP source suppression
- ARP detection based on DHCP snooping safety entries, 802.1X entries, and IP/MAC static binding entries
Multicast
- IGMP Snooping v2/v3
- IGMP Snooping fast-leave
- PIM snooping
- IGMP Snooping group-policy
- PIM-SM and PIM-SSM
- MVRP (GVRP analog)
- MFF
- Enhanced Layer 3 multicast
Routing
- IPv4/IPv6 static routing
- Equal-cost multi-path routing (ECMP)
- VRRP
- Dynamic routing such as RIP v1/2 and RIPng
- IS-IS
- Policy routing
- BGP, BGP4/BGP6
IPV6
- Neighbor Discovery (ND)
- PMTU
- ICMP v6, Telnet v6, SFTP v6, SNMP v6, BFD v6, VRRP v3
- IPv6 tunnel
- IPv6 Portal
- IPV6 SAVI
MPLS
- Support MPLS
- Support MCE
- Support MPLS VPN, VPLS
Zero configuration
- DHCP auto-config
- CWMP-TR069
Broadcast/Multicast/Unicast storm suppression
- Storm suppression based on port bandwidth percentage
- Storm suppression based on PPS
- Storm suppression based on BPS
Loop-free redundant Layer 2 topology
- G.8032 Ethernet ring protection switching (ERPS)
- STP Root Guard
- Digital Diagnostic Monitor (DDM)
- STP/RSTP/MSTP/PVST/PVST+
- BPDU Guard
- Link Detection (UDLD)
- BPDU Blocking and Root Guard
QoS/ACL
- Rate limit for receiving and transmitting packets
- CAR
- Eight output queues per port
- Layer 2 to Layer 4 packet filtering
- 802.1p priority and DSCP priority
- Traffic classification based on source MAC, destination MAC, source IP, destination IP, port, protocol, and VLAN
- Flexible queue scheduling algorithms based on both port and queue, including SP, WDRR, WRR, WFQ, and SP+WRR
- Time range
- WRED
Mirroring
- Flow mirroring
- N:4 port mirroring
- Local port mirroring and remote port mirroring
- Policy-based Mirroring
- Traffic Mirroring
Security
- Hierarchical user management and password protection
- Port isolation
- IP/Port/MAC binding
- IP source guard
- HTTPs
- MAC-based authentication
- 802.1X
- Storm constrains
- Public Key Infrastructure (PKI)
- Control Plane Protection (CoPP), Wireless Intrusion Prevention System (WIPS)
- AAA authentication
- RADIUS authentication
- HWTACACS
- SSH2.0
- CPU Protection
Loading and upgrading
- Loading and upgrading through XMODEM/FTP/TFTP
- Loading and upgrading from USB
Management and maintenance
- Loading and upgrading through XModem/FTP/TFTP
- SNMPv1/v2c/v3
- Restful
- Python
- Job scheduler
- Power, fan, and temperature alarming
- Track
- Zero Touch Provisioning
- 802.1ag and 802.3ah
- ISSU
- VCT
- Simple Network Management Protocol (SNMPv1/v2c/v3)
- Debugging information output
- Configuration through CLI, Telnet, and console port
- WD NMC network management system
- Alarming based on severity
- System log
- NTP
- Ping and Tracert
- Telnet-based remote maintenance
Hardware
Hardware Specifications
| Item | WD-GS-48G6Q28 | WD-GS-24G6Q28 |
|---|---|---|
| CPU | Dual Core, 1.6GHz | |
| Port Switching capacity | 2160Gbps | 1680 Gbps |
| Packet forwarding rate | 1607 Mpps | 1245 Mpps |
| System Switching Capacity | 2.56Tbps | |
| Dimensions (H × W × D) | 43.6 × 440 × 360 mm (1.72 × 17.32 × 14.17 in) | |
| Weight | 6 kg | 5 kg |
| Flash | 8 GB / Premium 16 GB | |
| SDRAM | 4 GB / Premium 8 GB | |
| Packet Buffer | 60 M | |
| Console ports | 1 | |
| Management Ethernet ports | 1 | |
| USB ports | 1 | |
| SFP+ | 48 | 24 |
| QSFP28 | 6 | 6 |
| Input voltage range | Rated voltage range: 100 to 240 VAC @ 50/60 Hz Max voltage range: 90 to 264 VAC @ 47 to 63 Hz |
|
| Power Supply slots | 2 | |
| Fan trays | 3 hot swappable fan trays, invertible airflow | |
| Power consumption | Single AC: 29W Dual AC: 36W |
Single AC:29W Dual AC：35W |
| Operating temperature | -5 ºC to 55ºC (32°F to 131°F) | |
| Storage Temperature | -40℃ to 85℃ (-40℉ to 185℉) | |
| Operating & storage humidity | 5% RH to 95% RH, non-condensing | |
| MTBF(Year) | 65.8 | 62.4 |
| MTTR(Hour) | 1 | 1 |
