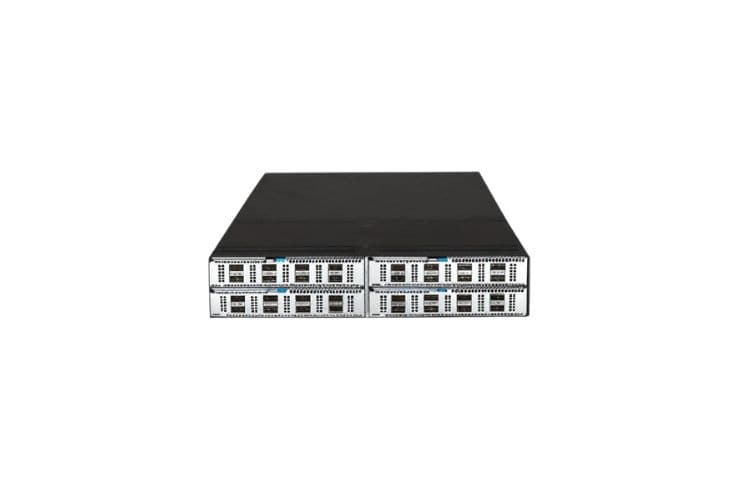

WD-DS-32QF
48 x QSFP28 100G ports with Tomahawk 3. High-performance switch for enterprise data centers.
6.4
Throughput
32*100G Ports
40/100G
Overview
The WD-DS-32QF is a high-performance switch optimized for enterprise data centers with 32*100G ports.
Data Center Switch
A high-capacity switch supporting 1.6Tbps to 6.4Tbps with up to 32 100G ports. Reduces cost and power per port for scalable 40/100G migration.
AI/ML Clusters
Optimized for high-throughput RDMA workloads with low latency, enhancing Job Completion Time (JCT) for AI/ML applications.
High-Performance Computing
Supports high-capacity 32*100G ports for seamless compute and storage network switching in HPC environments.
Cloud DCI
Supports 100G QSFP28 and 40G QSFP+ configurations for high-speed Data Center Interconnect (DCI) scenarios.
Key Capabilities
QSFP28 ports support 100G with breakout to 4x25G or 40G QSFP+ compatibility.
Supports PAM4 and NRZ configurations for flexible deployments.
48-port 1RU high-density design.
Low-latency switching optimized for real-time applications.
Specifications
Switch Ports
48 x QSFP28 100G + 8 x QSFP+ 40G
Switch Silicon
BCM88370 Tomahawk 3
TPM
TPM 2.0 SPI
Processor
Intel® Xeon® 4-Core 2.0 GHz
Rack
1RU form factor
Timing and Sync
Optional PPS In/Out, 1PPS Port, 10MHz Port, ToD Port, SyncE, IEEE 1588v2 PTP
BMC
AST2600 with OpenBMC secured by AST1050 Root of Trust
Fans
6 hot-swappable fan modules with 5+1 redundancy
SPI Flash
SAME 2 x 2
Storage
-40°C to 70°C
Memory
1600B DDR4 SO-DIMM with ECC
Operating Temperature
0°C to 45°C (front to back)
Storage Temperature
-40°C to 70°C (back to front)
Software & Compatibility
Software
- SONiC
Compatible Transceivers
- 100G QSFP28 SR4
- 100G QSFP28 PSM4
- 100G QSFP28 CWDM4
- 100G QSFP28 LR4
- 40G QSFP+ SR4
Compatible Cables
- 100G QSFP28 DAC
- 40G QSFP+ DAC
