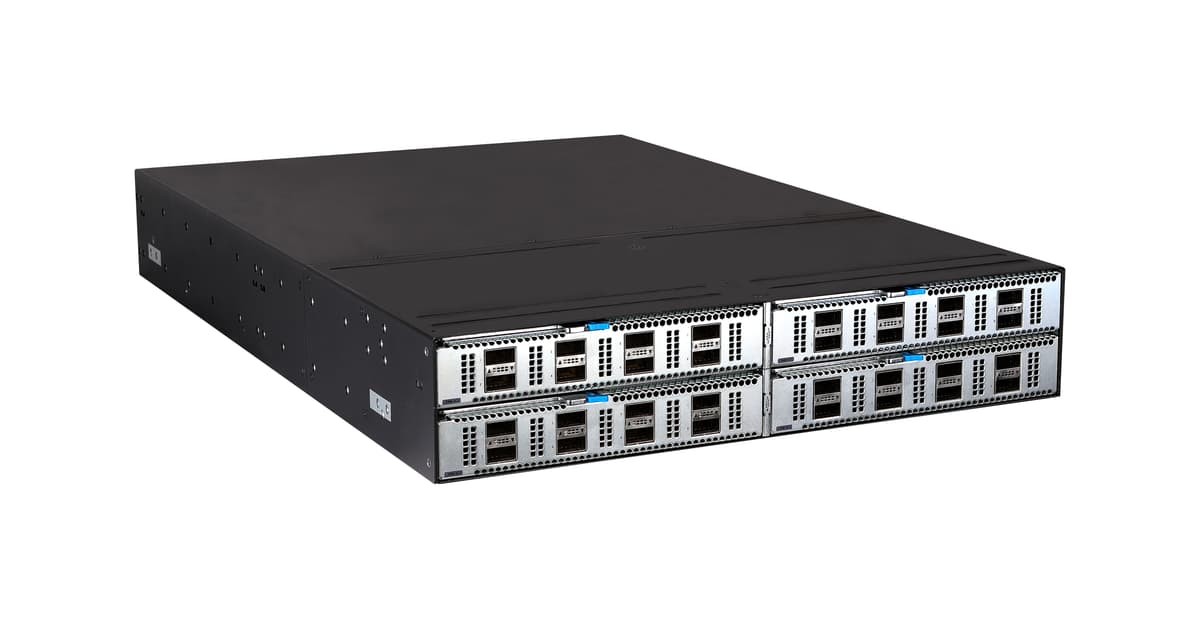

AIS800-320
Compact form-factor with 32 x QSFP800 ports, optimized for edge data centers.
25.6T
Throughput
32 Ports
QSFP-DD800
Overview
The AIS800-320 is a high-performance, low-latency switch for high-performance data centers.
Data Center Switch
The next-generation data center switch for core and edge data centers, supporting 1.6Tbps to 25.6Tbps and 1K to 10K ports with a maximum of 400G ports. Offers reduced cost and power per port, scalable and enables migration to 400G connectivity.
AI/ML Clusters
Ideal for low-latency and high-throughput RDMA-based workloads. Job Completion Time (JCT) using the cognitive routing and congestion management capabilities. The switch fully supports high-speed network insight and different applications.
High-Performance Computing
The large number of high-capacity Ethernet ports enables seamless switching and routing of compute and storage networks. Enable the virtualization of compute and storage in WLAN.
Cloud DCI
Supports 400G QSFP-DD 2x/8x/4x/16x/32x and future-proof 800G QSFP-DD800 2x/8x/4x/16x/32x for DCI scenarios.
Key Capabilities
QSFP-DD800 ports support 800G PAM4, with breakout to 2x400G, 4x200G, etc.
Supports multiple PAM4 and NRZ configurations across port types.
32-port 1RU high-density design.
Low-latency switching ideal for trading & real-time apps.
Specifications
Switch Ports
32 x QSFP-DD800 QSFP800
Switch Silicon
BCM78900 Tomahawk 5
TPM
TPM 2.0 SPI
Processor
Intel® Xeon® 6-Core 2.2 GHz
Rack
1RU form factor
Timing and Sync
Optional PPS In/Out, 1PPS Port, 10MHz Port, ToD Port, SyncE, IEEE 1588v2 PTP
BMC
AST2520 with OpenBMC secured by AST1050 Root of Trust
Fans
7 hot-swappable fan modules with 6+1 redundant fan
SPI Flash
SAME 2 x 2
Storage
-40°C to 70°C
Memory
3200B DDR4 SO-DIMM with ECC
Operating Temperature
0°C to 45°C (front to back)
Storage Temperature
-40°C to 70°C (back to front)
Software & Compatibility
Software
- SONiC
Compatible Transceivers
- 800G QSFP-DD LPO
- 800G QSFP-DD SR8
- 800G QSFP-DD PSM8
- 400G QSFP-DD SR4
- 400G QSFP-DD SR8
Compatible Cables
- 400G QSFP-DD SR4
